D-Link DES-F1006P-E 4-Port Unmanaged PoE Switch | 2× Uplink Ports, 100Mbps Speed, 250m Long-Range PoE

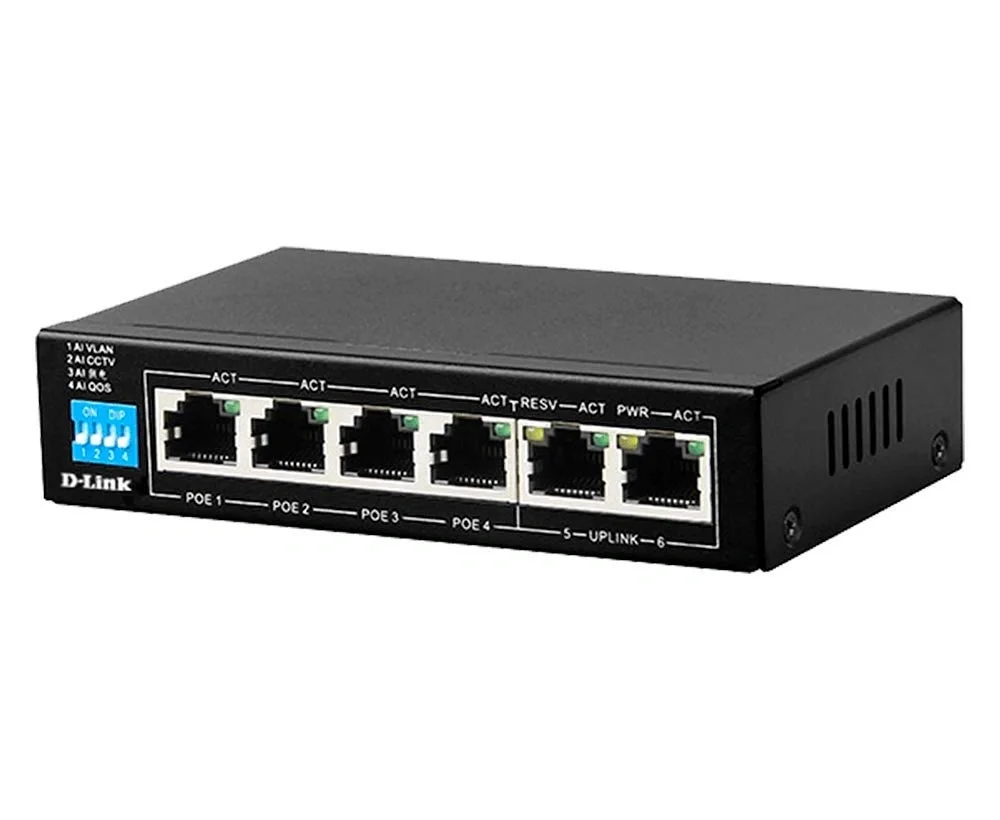

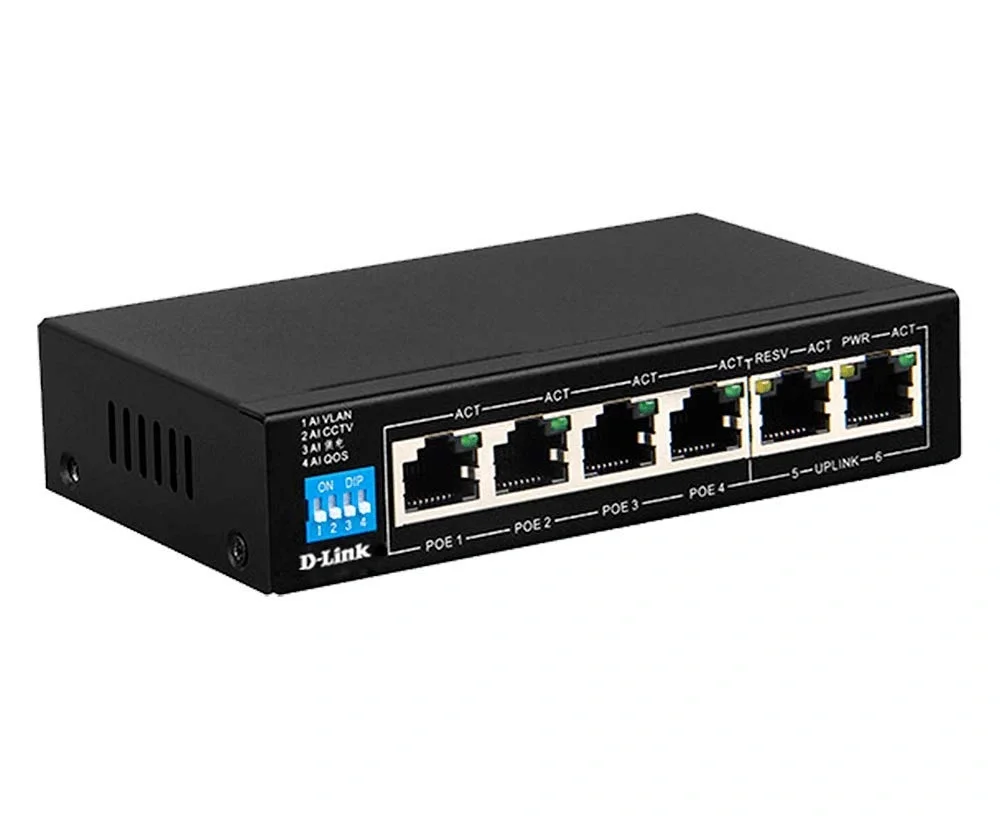

D-Link DES-F1006P-E 4-Port Unmanaged PoE Switch

Power Your Network, Simply and Reliably. The Perfect Hub for Your Security Cameras, IP Phones, and Access Points.

Tired of messy cables and searching for power outlets for your network devices? The D-Link DES-F1006P-E is the elegant and powerful solution you need. This compact and robust switch delivers both data and electrical power over a single Ethernet cable, dramatically simplifying your installation and reducing clutter.

Designed for reliability and ease of use, this unmanaged switch is a true plug-and-play device. Whether you're setting up a CCTV security system for your home, deploying IP phones in a small office, or expanding your Wi-Fi coverage with access points, the DES-F1006P-E provides a stable, efficient, and cost-effective foundation for your network.

Key Features at a Glance

• Power & Connect 4 Devices: Four dedicated 10/100 Mbps PoE ports to power and connect devices like cameras and phones.
• Go the Distance: Industry-leading 250-meter Long-Range PoE transmission, perfect for large areas and challenging installations.
• Effortless Setup: True plug-and-play functionality. No software or configuration needed—just plug it in and it works.
• Flexible Network Connection: Two dedicated uplink ports ensure a stable, high-speed connection to your router or main network without sacrificing a PoE port.
• Robust Power Supply: A generous 60W total PoE budget provides ample power for your connected devices.
• Built to Last: Features 6kV surge protection to safeguard your switch and connected equipment from power surges and lightning.

Core Functions Explained

Power Over Ethernet (PoE) Made Easy

Forget about bulky power adapters. The DES-F1006P-E features four PoE ports that comply with the IEEE 802.3af standard. This allows you to transmit both data and power through a single Ethernet cable.

• Total Power Budget: 60 Watts: This is your total "pool" of power. The switch can intelligently distribute up to 60W across the four PoE ports.
• Power Per Port: Up to 30 Watts: It can supply a single power-hungry device with up to 30W, making it compatible with a wide range of PTZ (Pan-Tilt-Zoom) cameras and modern access points.

Benefit: You gain incredible flexibility in placing your devices, as they no longer need to be near an electrical outlet. This results in a cleaner, faster, and more professional installation.

Break Through Distance Barriers with 250m Long-Range PoE

Standard Ethernet cables are limited to a 100-meter (328 ft) distance for data and power. The DES-F1006P-E shatters that limitation. With its extended-range mode, you can reliably power and connect devices up to 250 meters (820 ft) away.

Benefit: This is a game-changer for deploying security cameras on the far side of a parking lot, in a large warehouse, or across an expansive property without needing expensive signal repeaters or additional power sources.

Truly Plug-and-Play Simplicity

As an unmanaged switch, the DES-F1006P-E is built for maximum convenience. There is no complex software to install or web interface to configure.

• Auto MDI/MDIX: The switch automatically detects the type of Ethernet cable you're using (straight-through or crossover) and adjusts accordingly.
• Store-and-Forward: This transmission mode ensures data integrity by checking each packet for errors before forwarding it, leading to a more reliable network.

Benefit: It's ready to go right out of the box. Simply connect the power, plug in your devices, and your network is up and running in minutes. Perfect for users of all technical skill levels.

Engineered for Reliability and Durability

Your network is the backbone of your operations, and the DES-F1006P-E is built to protect it. The integrated 6kV surge protection shields the switch and your valuable connected devices from unexpected electrical spikes and lightning strikes, giving you peace of mind and protecting your investment.

Ideal Applications

This switch is the perfect choice for a variety of scenarios:

• Home & Business CCTV: Easily power and connect multiple IP security cameras around your property, even at long distances.
• Small Office Networking: Deploy VoIP phones, printers, and other PoE-enabled devices without the need for extra electrical work.
• Wi-Fi Expansion: Place Wi-Fi access points in optimal locations for the best coverage, unconstrained by the location of power outlets.

Technical Specifications

| Feature | Specification | | ----------------------- | ------------------------------------------------ | | Model | DES-F1006P-E | | Brand | D-Link | | Total Ports | 6 | | PoE Ports | 4 × 10/100 Mbps RJ45 Ports | | Uplink Ports | 2 × 10/100 Mbps RJ45 Ports | | PoE Standard | IEEE 802.3af | | Total PoE Budget | 60 Watts | | Max Power Per Port | 30 Watts | | PoE Range | Up to 250 meters (in extend mode) | | Switching Capacity | 1.2 Gbps | | Transmission Mode | Store-and-Forward | | MAC Address Table | 1K | | Key Features | Auto MDI/MDIX, VLAN Isolation, Plug & Play | | Protection | 6kV Lightning/Surge Protection | | Housing | Durable Metal Casing | | Power Supply | External Power Adapter |
